Práctica: VPN
Parte 1: acceso remoto OpenVPN

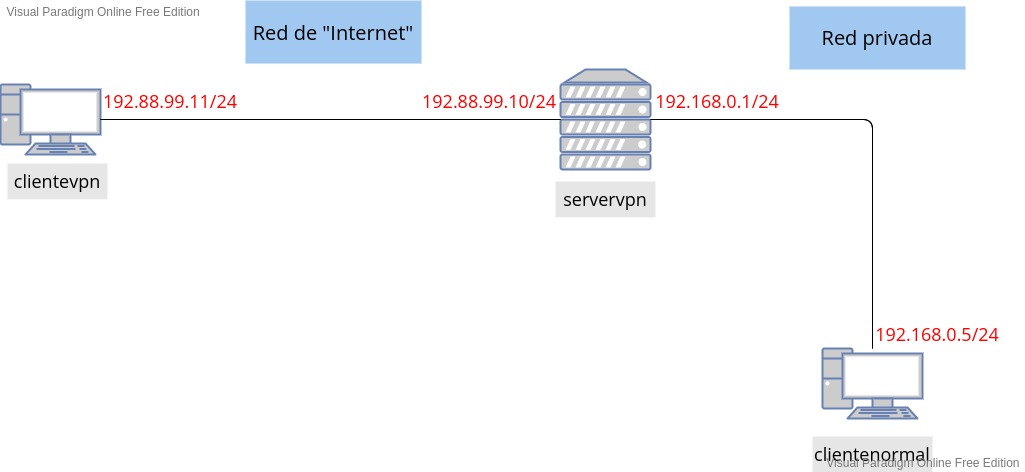

Escenario
Vagrantfile:
Vagrant.configure("2") do |config|
config.vm.synced_folder ".", "/vagrant", disabled: true
config.vm.provider :libvirt do |libvirt|
libvirt.cpus = 1
libvirt.memory = 512
end
config.vm.define :clientevpn do |clientevpn|
clientevpn.vm.box = "debian/bullseye64"
clientevpn.vm.hostname = "clientevpn"
clientevpn.vm.network :private_network,
:libvirt__network_name => "externa-vpn",
:libvirt__dhcp_enabled => false,
:ip => "192.88.99.11",
:libvirt__netmask => '255.255.255.0',
:libvirt__forward_mode => "veryisolated"
end
config.vm.define :servervpn do |servervpn|
servervpn.vm.box = "debian/bullseye64"
servervpn.vm.hostname = "servervpn"
servervpn.vm.network :private_network,
:libvirt__network_name => "externa-vpn",
:libvirt__dhcp_enabled => false,
:ip => "192.88.99.10",
:libvirt__netmask => '255.255.255.0',
:libvirt__forward_mode => "veryisolated"
servervpn.vm.network :private_network,
:libvirt__network_name => "interna-vpn",
:libvirt__dhcp_enabled => false,
:ip => "192.168.0.1",
:libvirt__netmask => '255.255.255.0',
:libvirt__forward_mode => "veryisolated"
end
config.vm.define :clientenormal do |clientenormal|
clientenormal.vm.box = "debian/bullseye64"
clientenormal.vm.hostname = "clientenormal"
clientenormal.vm.network :private_network,
:libvirt__network_name => "interna-vpn",
:libvirt__dhcp_enabled => false,
:ip => "192.168.0.5",
:libvirt__netmask => '255.255.255.0',
:libvirt__forward_mode => "veryisolated"
end
end
En servervpn
Instalar OpenVPN
Habilitar forwarding
Crear infraestructura de clave pública
Según la guía que estoy siguiendo es necesario copiar la configuración de /usr/share/easy-rsa a /etc/openvpn antes de continuar, para prevenir que futuras actualizaciones del paquete OpenVPN modifiquen las configuraciones que hagamos.
En nuestro caso esta posibilidad nunca llegaría a hacerse realidad, puesto que lo que estamos haciendo es simplemente una práctica, que se extiende durante un periodo de tiempo relativamente corto.
Aún así, lo hago por razones de organización, ya que todas las configuraciones manuales deben estar bajo /etc.
Inicializamos la PKI:
init-pki complete; you may now create a CA or requests.
Your newly created PKI dir is: /etc/openvpn/easy-rsa/pki
Generar certificado + clave privada de la CA
En este paso obtendremos el par de claves necesario de la Autoridad Certificadora (CA).
Posteriormente, es esta clave privada la que se usará para firmar los certificados tanto del servidor como del cliente.
Using SSL: openssl OpenSSL 1.1.1k 25 Mar 2021
Enter New CA Key Passphrase:
Re-Enter New CA Key Passphrase:
Generating RSA private key, 2048 bit long modulus (2 primes)
........................................................................................+++++
.......................................+++++
e is 65537 (0x010001)
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Common Name (eg: your user, host, or server name) [Easy-RSA CA]:Adrianj CA
CA creation complete and you may now import and sign cert requests.
Your new CA certificate file for publishing is at:
/etc/openvpn/easy-rsa/pki/ca.crt
Certificado generado: /etc/openvpn/easy-rsa/pki/ca.crt
Clave privada generada: /etc/openvpn/easy-rsa/pki/private/ca.key
Generar certificado + clave privada del servidor VPN
Using SSL: openssl OpenSSL 1.1.1k 25 Mar 2021
Generating a RSA private key
.......+++++
............................+++++
writing new private key to '/etc/openvpn/easy-rsa/pki/easy-rsa-2389.Tqf1G1/tmp.Ow20MK'
-----
Using configuration from /etc/openvpn/easy-rsa/pki/easy-rsa-2389.Tqf1G1/tmp.5Exl9Q
Enter pass phrase for /etc/openvpn/easy-rsa/pki/private/ca.key:
Check that the request matches the signature
Signature ok
The Subject's Distinguished Name is as follows
commonName :ASN.1 12:'server'
Certificate is to be certified until Mar 18 08:30:09 2024 GMT (825 days)
Write out database with 1 new entries
Data Base Updated
Certificado generado: /etc/openvpn/easy-rsa/pki/issued/server.crt
Clave privada generada: /etc/openvpn/easy-rsa/pki/private/server.key
Generar parámetros Diffie–Hellman
Using SSL: openssl OpenSSL 1.1.1k 25 Mar 2021
Generating DH parameters, 2048 bit long safe prime, generator 2
This is going to take a long time
.......................+.....................+..............................................................+......................+................................................................................+...................................................................................................................................................+....................+....................................................................+..................+.......+..............................................................+...........................................................................+................................................................................................................................+.....................................+...........................................................................................................................................................................+................................................................................................................................................................................................................+.+.............................+.........................+..............................................................................................................................................................................................................................+..............+......................................................................+................................+.................................+......................................................................................................+............................................................................................+...........................................................................................................................................................................................+........................................+.............................................................................+....................................................................................................+...........+...........................................................+.....................................................................+...............................................................................................................................................+...........................................................................................................................................+.....................................+........................................................................................+...................+.............+.......................+.......................................................................................+.........................................................+...........................................................................+...............................................................................................................................................................+.......................................+........................................................+..........................................+................................................................................................................+.........+.............................+..........................................................................+...............................................+............................................................................................................+.......+...............................................................................................................+............................................+................+..................................................+...............+..............................................................................+.......................................................................+.................................+..+.+.+..............................................................................................+.............................................................................+...................................................................................................................................................................................................+...........+................................................................................+............................................................................................................................................................................................................+............................+..+......................................................................................................................................................................................+..............................................................................................+......................................................................................................................................................................................................................................................................................................................................................................................................+........................................+......................+...............................+...........................+...............................................................................................+..........................................................................................................................+.......................................................................+.................................................................................+....................................................................+................................+.++*++*++*++*
DH parameters of size 2048 created at /etc/openvpn/easy-rsa/pki/dh.pem
Generar certificado + clave privada del cliente VPN
Using SSL: openssl OpenSSL 1.1.1k 25 Mar 2021
Generating a RSA private key
..............+++++
................................+++++
writing new private key to '/etc/openvpn/easy-rsa/pki/easy-rsa-2541.yaiUd0/tmp.WePx19'
-----
Using configuration from /etc/openvpn/easy-rsa/pki/easy-rsa-2541.yaiUd0/tmp.GMaG7k
Enter pass phrase for /etc/openvpn/easy-rsa/pki/private/ca.key:
Check that the request matches the signature
Signature ok
The Subject's Distinguished Name is as follows
commonName :ASN.1 12:'clientevpn'
Certificate is to be certified until Mar 18 08:49:43 2024 GMT (825 days)
Write out database with 1 new entries
Data Base Updated
Certificado generado: /etc/openvpn/easy-rsa/pki/issued/clientevpn.crt
Clave privada generada: /etc/openvpn/easy-rsa/pki/private/clientevpn.key
Pasar ficheros necesarios al cliente VPN
sudo cp -rp /etc/openvpn/easy-rsa/pki/{ca.crt,issued/clientevpn.crt,private/clientevpn.key} ~
sudo chown vagrant: ~/{ca.crt,clientevpn.crt,clientevpn.key}
scp ~/{ca.crt,clientevpn.crt,clientevpn.key} vagrant@192.88.99.11:/home/vagrant
Configurar el servidor VPN
Copio la plantilla oficial de configuración para servidores openvpn, para partir de ella:
sudo cp /usr/share/doc/openvpn/examples/sample-config-files/server.conf /etc/openvpn/server/servidor.conf
Modifico /etc/openvpn/server/servidor.conf:
port 1194
proto udp
dev tun
ca /etc/openvpn/easy-rsa/pki/ca.crt
cert /etc/openvpn/easy-rsa/pki/issued/server.crt
key /etc/openvpn/easy-rsa/pki/private/server.key
dh /etc/openvpn/easy-rsa/pki/dh.pem
topology subnet
# DIRECCIONAMIENTO PARA EL TÚNEL
#
# El servidor será: 10.99.99.1
# El resto de IPs estarán disponibles para los clientes
server 10.99.99.0 255.255.255.0
ifconfig-pool-persist /var/log/openvpn/ipp.txt
push "route 192.168.0.0 255.255.255.0"
keepalive 10 120
cipher AES-256-CBC
persist-key
persist-tun
status /var/log/openvpn/openvpn-status.log
verb 3
explicit-exit-notify 1
Iniciar el servidor
Verifico que está funcionando:
● openvpn-server@servidor.service - OpenVPN service for servidor
Loaded: loaded (/lib/systemd/system/openvpn-server@.service; enabled; vendor preset: enabled)
Active: active (running) since Tue 2021-12-14 09:16:30 UTC; 35s ago
Docs: man:openvpn(8)
https://community.openvpn.net/openvpn/wiki/Openvpn24ManPage
https://community.openvpn.net/openvpn/wiki/HOWTO
Main PID: 2800 (openvpn)
Status: "Initialization Sequence Completed"
Tasks: 1 (limit: 528)
Memory: 1.0M
CPU: 9ms
CGroup: /system.slice/system-openvpn\x2dserver.slice/openvpn-server@servidor.service
└─2800 /usr/sbin/openvpn --status /run/openvpn-server/status-servidor.log --status-version 2 --suppress-timestamps --config servidor.conf
Dec 14 09:16:30 servervpn openvpn[2800]: net_iface_up: set tun0 up
Dec 14 09:16:30 servervpn openvpn[2800]: net_addr_v4_add: 10.99.99.1/24 dev tun0
Dec 14 09:16:30 servervpn openvpn[2800]: Could not determine IPv4/IPv6 protocol. Using AF_INET
Dec 14 09:16:30 servervpn openvpn[2800]: Socket Buffers: R=[212992->212992] S=[212992->212992]
Dec 14 09:16:30 servervpn openvpn[2800]: UDPv4 link local (bound): [AF_INET][undef]:1194
Dec 14 09:16:30 servervpn openvpn[2800]: UDPv4 link remote: [AF_UNSPEC]
Dec 14 09:16:30 servervpn openvpn[2800]: MULTI: multi_init called, r=256 v=256
Dec 14 09:16:30 servervpn openvpn[2800]: IFCONFIG POOL IPv4: base=10.99.99.2 size=252
Dec 14 09:16:30 servervpn openvpn[2800]: IFCONFIG POOL LIST
Dec 14 09:16:30 servervpn openvpn[2800]: Initialization Sequence Completed
En clientevpn
Instalar OpenVPN
Mover ficheros a la ruta adecuada
sudo mv ~/{ca.crt,clientevpn.crt,clientevpn.key} /etc/openvpn/client
sudo chown root: /etc/openvpn/client/*
/etc/openvpn/client queda así:
vagrant@clientevpn:/etc/openvpn/client$ ls -la
total 24
drwxr-xr-x 2 root root 4096 Dec 14 09:31 .
drwxr-xr-x 4 root root 4096 Dec 14 09:30 ..
-rw------- 1 root root 1200 Dec 14 09:01 ca.crt
-rw------- 1 root root 4498 Dec 14 09:01 clientevpn.crt
-rw------- 1 root root 1704 Dec 14 09:01 clientevpn.key
Configurar el cliente VPN
Copio la plantilla oficial de configuración para clientes openvpn, para partir de ella:
sudo cp /usr/share/doc/openvpn/examples/sample-config-files/client.conf /etc/openvpn/client/cliente.conf
Modifico /etc/openvpn/client/cliente.conf:
client
dev tun
proto udp
remote 192.88.99.10 1194
resolv-retry infinite
nobind
persist-key
persist-tun
ca /etc/openvpn/client/ca.crt
cert /etc/openvpn/client/clientevpn.crt
key /etc/openvpn/client/clientevpn.key
remote-cert-tls server
cipher AES-256-CBC
verb 3
Habilito el servicio:
Verifico que funciona:
● openvpn-client@cliente.service - OpenVPN tunnel for cliente
Loaded: loaded (/lib/systemd/system/openvpn-client@.service; enabled; vendor preset: enabled)
Active: active (running) since Tue 2021-12-14 09:43:44 UTC; 5s ago
Docs: man:openvpn(8)
https://community.openvpn.net/openvpn/wiki/Openvpn24ManPage
https://community.openvpn.net/openvpn/wiki/HOWTO
Main PID: 12859 (openvpn)
Status: "Initialization Sequence Completed"
Tasks: 1 (limit: 528)
Memory: 1.9M
CPU: 17ms
CGroup: /system.slice/system-openvpn\x2dclient.slice/openvpn-client@cliente.service
└─12859 /usr/sbin/openvpn --suppress-timestamps --nobind --config cliente.conf
Dec 14 09:43:44 clientevpn openvpn[12859]: net_route_v4_best_gw query: dst 0.0.0.0
Dec 14 09:43:44 clientevpn openvpn[12859]: net_route_v4_best_gw result: via 192.168.121.1 dev eth0
Dec 14 09:43:44 clientevpn openvpn[12859]: ROUTE_GATEWAY 192.168.121.1/255.255.255.0 IFACE=eth0 HWADD>
Dec 14 09:43:44 clientevpn openvpn[12859]: TUN/TAP device tun0 opened
Dec 14 09:43:44 clientevpn openvpn[12859]: net_iface_mtu_set: mtu 1500 for tun0
Dec 14 09:43:44 clientevpn openvpn[12859]: net_iface_up: set tun0 up
Dec 14 09:43:44 clientevpn openvpn[12859]: net_addr_v4_add: 10.99.99.2/24 dev tun0
Dec 14 09:43:44 clientevpn openvpn[12859]: net_route_v4_add: 192.168.0.0/24 via 10.99.99.1 dev [NULL]>
Dec 14 09:43:44 clientevpn openvpn[12859]: WARNING: this configuration may cache passwords in memory >
Dec 14 09:43:44 clientevpn openvpn[12859]: Initialization Sequence Completed
En clientenormal
Cambiar ruta por defecto
Pruebas de funcionamiento
(todas estarán hechas desde clientevpn)
Ping al otro extremo del túnel (servervpn):
vagrant@clientevpn:/etc/openvpn/client$ ping 10.99.99.1
PING 10.99.99.1 (10.99.99.1) 56(84) bytes of data.
64 bytes from 10.99.99.1: icmp_seq=1 ttl=64 time=0.412 ms
64 bytes from 10.99.99.1: icmp_seq=2 ttl=64 time=0.696 ms
64 bytes from 10.99.99.1: icmp_seq=3 ttl=64 time=0.455 ms
^C
--- 10.99.99.1 ping statistics ---
3 packets transmitted, 3 received, 0% packet loss, time 2048ms
rtt min/avg/max/mdev = 0.412/0.521/0.696/0.124 ms
Ping a clientenormal:
vagrant@clientevpn:/etc/openvpn/client$ ping 192.168.0.5
PING 192.168.0.5 (192.168.0.5) 56(84) bytes of data.
64 bytes from 192.168.0.5: icmp_seq=1 ttl=63 time=0.849 ms
64 bytes from 192.168.0.5: icmp_seq=2 ttl=63 time=0.839 ms
^C
--- 192.168.0.5 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1001ms
rtt min/avg/max/mdev = 0.839/0.844/0.849/0.005 ms
Traceroute a clientenormal (para que se vea claro la utilización del túnel VPN):
vagrant@clientevpn:/etc/openvpn/client$ traceroute 192.168.0.5
traceroute to 192.168.0.5 (192.168.0.5), 30 hops max, 60 byte packets
1 10.99.99.1 (10.99.99.1) 0.446 ms 0.364 ms 0.331 ms
2 192.168.0.5 (192.168.0.5) 0.553 ms 0.612 ms 0.581 ms
Parte 2: sitio a sitio OpenVPN

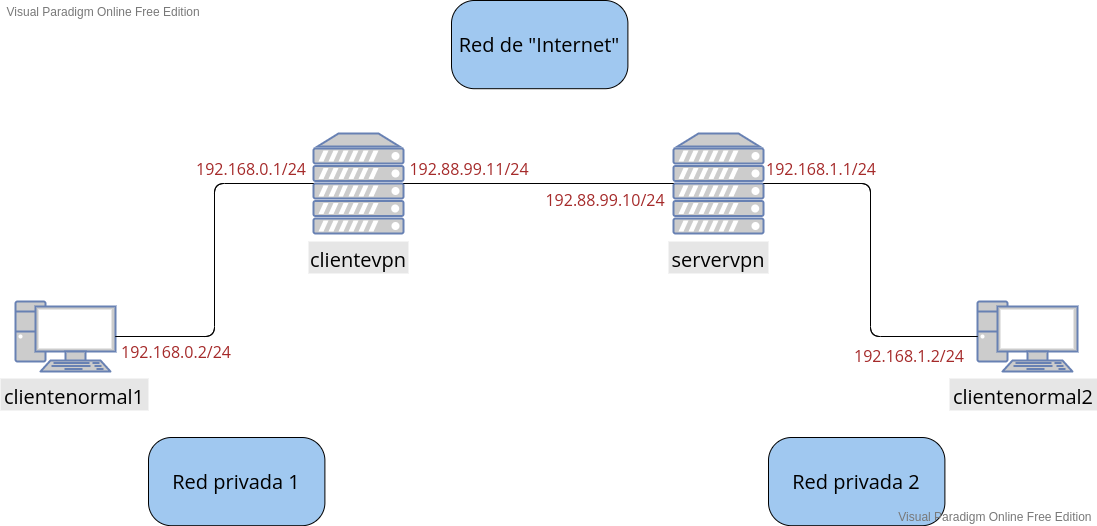

Escenario
Vagrantfile:
Vagrant.configure("2") do |config|
config.vm.synced_folder ".", "/vagrant", disabled: true
config.vm.provider :libvirt do |libvirt|
libvirt.cpus = 1
libvirt.memory = 512
end
config.vm.define :clientenormal1 do |clientenormal1|
clientenormal1.vm.box = "debian/bullseye64"
clientenormal1.vm.hostname = "clientenormal1"
clientenormal1.vm.network :private_network,
:libvirt__network_name => "privada1-vpn2",
:libvirt__dhcp_enabled => false,
:ip => "192.168.0.2",
:libvirt__netmask => '255.255.255.0',
:libvirt__forward_mode => "veryisolated"
end
config.vm.define :clientevpn do |clientevpn|
clientevpn.vm.box = "debian/bullseye64"
clientevpn.vm.hostname = "clientevpn"
clientevpn.vm.network :private_network,
:libvirt__network_name => "privada1-vpn2",
:libvirt__dhcp_enabled => false,
:ip => "192.168.0.1",
:libvirt__netmask => '255.255.255.0',
:libvirt__forward_mode => "veryisolated"
clientevpn.vm.network :private_network,
:libvirt__network_name => "internet-vpn2",
:libvirt__dhcp_enabled => false,
:ip => "192.88.99.11",
:libvirt__netmask => '255.255.255.0',
:libvirt__forward_mode => "veryisolated"
end
config.vm.define :servervpn do |servervpn|
servervpn.vm.box = "debian/bullseye64"
servervpn.vm.hostname = "servervpn"
servervpn.vm.network :private_network,
:libvirt__network_name => "internet-vpn2",
:libvirt__dhcp_enabled => false,
:ip => "192.88.99.10",
:libvirt__netmask => '255.255.255.0',
:libvirt__forward_mode => "veryisolated"
servervpn.vm.network :private_network,
:libvirt__network_name => "privada2-vpn2",
:libvirt__dhcp_enabled => false,
:ip => "192.168.1.1",
:libvirt__netmask => '255.255.255.0',
:libvirt__forward_mode => "veryisolated"
end
config.vm.define :clientenormal2 do |clientenormal2|
clientenormal2.vm.box = "debian/bullseye64"
clientenormal2.vm.hostname = "clientenormal2"
clientenormal2.vm.network :private_network,
:libvirt__network_name => "privada2-vpn2",
:libvirt__dhcp_enabled => false,
:ip => "192.168.1.2",
:libvirt__netmask => '255.255.255.0',
:libvirt__forward_mode => "veryisolated"
end
end
En servervpn
Instalar OpenVPN
Habilitar forwarding
Crear PKI
init-pki complete; you may now create a CA or requests.
Your newly created PKI dir is: /etc/openvpn/easy-rsa/pki
Generar certificado + clave privada de la CA
Using SSL: openssl OpenSSL 1.1.1k 25 Mar 2021
Enter New CA Key Passphrase:
Re-Enter New CA Key Passphrase:
Generating RSA private key, 2048 bit long modulus (2 primes)
..................+++++
..................................+++++
e is 65537 (0x010001)
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Common Name (eg: your user, host, or server name) [Easy-RSA CA]:Adrianj CA
CA creation complete and you may now import and sign cert requests.
Your new CA certificate file for publishing is at:
/etc/openvpn/easy-rsa/pki/ca.crt
Generar certificado + clave privada del servidor VPN
Using SSL: openssl OpenSSL 1.1.1k 25 Mar 2021
Generating a RSA private key
..............................................................+++++
........................................................................................................................+++++
writing new private key to '/etc/openvpn/easy-rsa/pki/easy-rsa-2046.nRVdyM/tmp.6vm2xf'
-----
Using configuration from /etc/openvpn/easy-rsa/pki/easy-rsa-2046.nRVdyM/tmp.3Nm9uS
Enter pass phrase for /etc/openvpn/easy-rsa/pki/private/ca.key:
Check that the request matches the signature
Signature ok
The Subject's Distinguished Name is as follows
commonName :ASN.1 12:'server'
Certificate is to be certified until Apr 3 09:13:11 2024 GMT (825 days)
Write out database with 1 new entries
Data Base Updated
Generar parámetros Diffie–Hellman
Using SSL: openssl OpenSSL 1.1.1k 25 Mar 2021
Generating DH parameters, 2048 bit long safe prime, generator 2
This is going to take a long time
...................................+....................+..........................+....................................................................................................................................................................................................................+.....................+.....................................................................................................................................................................................................................................+...........+.................................................................................................................................+.................................................+....................................................+.........................................................................................................................................................................................................................+.............................+.............................................+..................................................................................................................................................................+............................................................................................................................................................................................................................................................................+..............................................................................................................................+.........................................................................................................+.......................................................................+................................................................................................................................................................+.......................................................................................................................................................+........................................................................................................................................................................................+...................................................................................+............................................................................+....................................+...............................................................+...............................................................................................................+.....................................................................................................................................................................................................................................+.....................+...................................+..................................................................................................+.............................................................................................+.......................................................................+..................................+......................................................................................................................................+....................................................+........................................................................................................................................................................................................................................................+........................................................................................................................................+...................................................................................................................................+....................................+....................+.....................................................................................................+..+...............................+..................................+...........................+.....................................................................................................................+...............................................................................................................................................................................................+................+...+.........................................................+..+.........+....+...+................................................................................................+...............................................................................................................................................................................................................................................................................................................................................+..................................................................+...............................................................................................................................+.....................................................................................................+............+...................................+.............................................................................................................................................+...............................................................................................+.........+.................+...........................................................................................................................................+....+........................................................................................+................+........+................................................................................................................................................................................................................................................+.......................................................................................................+.............................................................................................................................................................................................................................................+................................................................+...........................................................................................................................................................................+..................+..................................+...................................................................................................................................................................................................................................+....................................................................................................+.......................................................................................................................................................................................+..................................++*++*++*++*
DH parameters of size 2048 created at /etc/openvpn/easy-rsa/pki/dh.pem
Generar certificado + clave privada del cliente VPN
Using SSL: openssl OpenSSL 1.1.1k 25 Mar 2021
Generating a RSA private key
.......................................................................+++++
................................+++++
writing new private key to '/etc/openvpn/easy-rsa/pki/easy-rsa-2162.MUtxW0/tmp.cwHjMI'
-----
Using configuration from /etc/openvpn/easy-rsa/pki/easy-rsa-2162.MUtxW0/tmp.tJCZID
Enter pass phrase for /etc/openvpn/easy-rsa/pki/private/ca.key:
Check that the request matches the signature
Signature ok
The Subject's Distinguished Name is as follows
commonName :ASN.1 12:'clientevpn'
Certificate is to be certified until Apr 3 09:28:02 2024 GMT (825 days)
Write out database with 1 new entries
Data Base Updated
Pasar ficheros necesarios al cliente VPN
sudo cp -rp /etc/openvpn/easy-rsa/pki/{ca.crt,issued/clientevpn.crt,private/clientevpn.key} ~
sudo chown vagrant: ~/{ca.crt,clientevpn.crt,clientevpn.key}
scp ~/{ca.crt,clientevpn.crt,clientevpn.key} vagrant@192.88.99.11:/home/vagrant
Configurar el servidor VPN
Creo el client-config-dir junto con un fichero con información sobre clientevpn:
cd /etc/openvpn
sudo mkdir ccd
cd ccd
sudo touch clientevpn
echo iroute 192.168.0.0 255.255.255.0 > /etc/openvpn/ccd/clientevpn
Creo el fichero de configuración partiendo de una plantilla:
sudo cp /usr/share/doc/openvpn/examples/sample-config-files/server.conf /etc/openvpn/server/servidor.conf
Modifico /etc/openvpn/server/servidor.conf:
port 1194
proto udp
dev tun
ca /etc/openvpn/easy-rsa/pki/ca.crt
cert /etc/openvpn/easy-rsa/pki/issued/server.crt
key /etc/openvpn/easy-rsa/pki/private/server.key
dh /etc/openvpn/easy-rsa/pki/dh.pem
topology subnet
server 10.99.99.0 255.255.255.0
ifconfig-pool-persist /var/log/openvpn/ipp.txt
push "route 192.168.1.0 255.255.255.0"
client-config-dir /etc/openvpn/ccd
route 192.168.0.0 255.255.255.0
keepalive 10 120
cipher AES-256-CBC
persist-key
persist-tun
status /var/log/openvpn/openvpn-status.log
verb 3
explicit-exit-notify 1
Iniciar el servidor
Verifico que está funcionando:
● openvpn-server@servidor.service - OpenVPN service for servidor
Loaded: loaded (/lib/systemd/system/openvpn-server@.service; enabled; vendor preset: enabled)
Active: active (running) since Thu 2021-12-30 09:47:53 UTC; 12s ago
Docs: man:openvpn(8)
https://community.openvpn.net/openvpn/wiki/Openvpn24ManPage
https://community.openvpn.net/openvpn/wiki/HOWTO
Main PID: 2291 (openvpn)
Status: "Initialization Sequence Completed"
Tasks: 1 (limit: 528)
Memory: 1020.0K
CPU: 7ms
CGroup: /system.slice/system-openvpn\x2dserver.slice/openvpn-server@servidor.service
└─2291 /usr/sbin/openvpn --status /run/openvpn-server/status-servidor.log --status-vers>
Dec 30 09:47:53 servervpn openvpn[2291]: net_addr_v4_add: 10.99.99.1/24 dev tun0
Dec 30 09:47:53 servervpn openvpn[2291]: net_route_v4_add: 192.168.0.0/24 via 10.99.99.2 dev [NULL] >
Dec 30 09:47:53 servervpn openvpn[2291]: Could not determine IPv4/IPv6 protocol. Using AF_INET
Dec 30 09:47:53 servervpn openvpn[2291]: Socket Buffers: R=[212992->212992] S=[212992->212992]
Dec 30 09:47:53 servervpn openvpn[2291]: UDPv4 link local (bound): [AF_INET][undef]:1194
Dec 30 09:47:53 servervpn openvpn[2291]: UDPv4 link remote: [AF_UNSPEC]
Dec 30 09:47:53 servervpn openvpn[2291]: MULTI: multi_init called, r=256 v=256
Dec 30 09:47:53 servervpn openvpn[2291]: IFCONFIG POOL IPv4: base=10.99.99.2 size=252
Dec 30 09:47:53 servervpn openvpn[2291]: IFCONFIG POOL LIST
En clientevpn
Instalar OpenVPN
Habilitar forwarding
Mover ficheros a la ruta adecuada
sudo mv ~/{ca.crt,clientevpn.crt,clientevpn.key} /etc/openvpn/client
sudo chown root: /etc/openvpn/client/*
Configurar el cliente VPN
Copio la plantilla oficial de configuración para clientes openvpn, para partir de ella:
sudo cp /usr/share/doc/openvpn/examples/sample-config-files/client.conf /etc/openvpn/client/cliente.conf
Modifico /etc/openvpn/client/cliente.conf:
client
dev tun
proto udp
remote 192.88.99.10 1194
resolv-retry infinite
nobind
persist-key
persist-tun
ca /etc/openvpn/client/ca.crt
cert /etc/openvpn/client/clientevpn.crt
key /etc/openvpn/client/clientevpn.key
remote-cert-tls server
cipher AES-256-CBC
verb 3
Habilito el servicio:
Verifico que funciona:
● openvpn-client@cliente.service - OpenVPN tunnel for cliente
Loaded: loaded (/lib/systemd/system/openvpn-client@.service; enabled; vendor preset: enabled)
Active: active (running) since Thu 2021-12-30 10:20:45 UTC; 39s ago
Docs: man:openvpn(8)
https://community.openvpn.net/openvpn/wiki/Openvpn24ManPage
https://community.openvpn.net/openvpn/wiki/HOWTO
Main PID: 10909 (openvpn)
Status: "Initialization Sequence Completed"
Tasks: 1 (limit: 528)
Memory: 1.4M
CPU: 11ms
CGroup: /system.slice/system-openvpn\x2dclient.slice/openvpn-client@cliente.service
└─10909 /usr/sbin/openvpn --suppress-timestamps --nobind --config cliente.conf
Dec 30 10:20:45 clientevpn openvpn[10909]: net_route_v4_best_gw query: dst 0.0.0.0
Dec 30 10:20:45 clientevpn openvpn[10909]: net_route_v4_best_gw result: via 192.168.121.1 dev eth0
Dec 30 10:20:45 clientevpn openvpn[10909]: ROUTE_GATEWAY 192.168.121.1/255.255.255.0 IFACE=eth0 HWADDR=52:54:00:>
Dec 30 10:20:45 clientevpn openvpn[10909]: TUN/TAP device tun0 opened
Dec 30 10:20:45 clientevpn openvpn[10909]: net_iface_mtu_set: mtu 1500 for tun0
Dec 30 10:20:45 clientevpn openvpn[10909]: net_iface_up: set tun0 up
Dec 30 10:20:45 clientevpn openvpn[10909]: net_addr_v4_add: 10.99.99.2/24 dev tun0
Dec 30 10:20:45 clientevpn openvpn[10909]: net_route_v4_add: 192.168.1.0/24 via 10.99.99.1 dev [NULL] table 0 me>
Dec 30 10:20:45 clientevpn openvpn[10909]: WARNING: this configuration may cache passwords in memory -- use the >
En clientenormal1
Cambiar ruta por defecto
En clientenormal2
Cambiar ruta por defecto
Pruebas de funcionamiento
Ping desde clientenormal1 a clientenormal2:
vagrant@clientenormal1:~$ ping 192.168.1.2
PING 192.168.1.2 (192.168.1.2) 56(84) bytes of data.
64 bytes from 192.168.1.2: icmp_seq=1 ttl=62 time=4.45 ms
64 bytes from 192.168.1.2: icmp_seq=2 ttl=62 time=2.30 ms
^C
--- 192.168.1.2 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1001ms
rtt min/avg/max/mdev = 2.301/3.376/4.451/1.075 ms
Ping desde clientenormal2 a clientenormal1:
vagrant@clientenormal2:~$ ping 192.168.0.2
PING 192.168.0.2 (192.168.0.2) 56(84) bytes of data.
64 bytes from 192.168.0.2: icmp_seq=1 ttl=62 time=2.26 ms
64 bytes from 192.168.0.2: icmp_seq=2 ttl=62 time=2.24 ms
64 bytes from 192.168.0.2: icmp_seq=3 ttl=62 time=2.19 ms
^C
--- 192.168.0.2 ping statistics ---
3 packets transmitted, 3 received, 0% packet loss, time 2004ms
rtt min/avg/max/mdev = 2.188/2.229/2.264/0.031 ms
Traceroute desde clientenormal1 a clientenormal2:
vagrant@clientenormal1:~$ traceroute 192.168.1.2
traceroute to 192.168.1.2 (192.168.1.2), 30 hops max, 60 byte packets
1 192.168.0.1 (192.168.0.1) 0.521 ms 0.438 ms 0.433 ms
2 10.99.99.1 (10.99.99.1) 2.229 ms 2.196 ms 2.177 ms
3 192.168.1.2 (192.168.1.2) 2.129 ms 2.082 ms 2.035 ms
Traceroute desde clientenormal2 a clientenormal1:
vagrant@clientenormal2:~$ traceroute 192.168.0.2
traceroute to 192.168.0.2 (192.168.0.2), 30 hops max, 60 byte packets
1 192.168.1.1 (192.168.1.1) 0.613 ms 0.538 ms 0.507 ms
2 10.99.99.2 (10.99.99.2) 2.864 ms 2.828 ms 2.812 ms
3 192.168.0.2 (192.168.0.2) 2.824 ms 2.778 ms 3.276 ms
Parte 3: acceso remoto WireGuard
Escenario
Vagrantfile:
Vagrant.configure("2") do |config|
config.vm.synced_folder ".", "/vagrant", disabled: true
config.vm.provider :libvirt do |libvirt|
libvirt.cpus = 1
libvirt.memory = 512
end
config.vm.define :clientevpn do |clientevpn|
clientevpn.vm.box = "debian/bullseye64"
clientevpn.vm.hostname = "clientevpn"
clientevpn.vm.network :private_network,
:libvirt__network_name => "internet-vpn3",
:libvirt__dhcp_enabled => false,
:ip => "192.88.99.11",
:libvirt__netmask => '255.255.255.0',
:libvirt__forward_mode => "veryisolated"
end
config.vm.define :servervpn do |servervpn|
servervpn.vm.box = "debian/bullseye64"
servervpn.vm.hostname = "servervpn"
servervpn.vm.network :private_network,
:libvirt__network_name => "internet-vpn3",
:libvirt__dhcp_enabled => false,
:ip => "192.88.99.10",
:libvirt__netmask => '255.255.255.0',
:libvirt__forward_mode => "veryisolated"
servervpn.vm.network :private_network,
:libvirt__network_name => "privada-vpn3",
:libvirt__dhcp_enabled => false,
:ip => "192.168.0.1",
:libvirt__netmask => '255.255.255.0',
:libvirt__forward_mode => "veryisolated"
end
config.vm.define :clientenormal do |clientenormal|
clientenormal.vm.box = "debian/bullseye64"
clientenormal.vm.hostname = "clientenormal"
clientenormal.vm.network :private_network,
:libvirt__network_name => "privada-vpn3",
:libvirt__dhcp_enabled => false,
:ip => "192.168.0.2",
:libvirt__netmask => '255.255.255.0',
:libvirt__forward_mode => "veryisolated"
end
end
En servervpn
Instalar WireGuard
Generar par de claves
wg genkey | sudo tee /etc/wireguard/server_private.key | wg pubkey | sudo tee /etc/wireguard/server_public.key
Configurar
Creo el fichero de configuración (wg0 será el nombre de la interfaz):
Lo modifico:
[Interface]
Address = 10.99.99.1/24
ListenPort = 51820
PrivateKey = wPO8E5rUB9hFCwJMQYsLwDtNV7eX9SZmL9h/VO+NwFY=
# IP forwarding
PreUp = sysctl -w net.ipv4.ip_forward=1
[Peer]
PublicKey = GLJ8rEoPu22e+t2xPP54TJoGCoq09+HiOuiwBV3TzSw=
AllowedIPs = 10.99.99.2/32
Modificar permisos
Iniciar WireGuard
[#] sysctl -w net.ipv4.ip_forward=1
net.ipv4.ip_forward = 1
[#] ip link add wg0 type wireguard
[#] wg setconf wg0 /dev/fd/63
[#] ip -4 address add 10.99.99.1/24 dev wg0
[#] ip link set mtu 1420 up dev wg0
Se nos crea la interfaz:
5: wg0: <POINTOPOINT,NOARP,UP,LOWER_UP> mtu 1420 qdisc noqueue state UNKNOWN group default qlen 1000
link/none
inet 10.99.99.1/24 scope global wg0
valid_lft forever preferred_lft forever
Y la ruta:
En clientevpn (debian 11)
Instalar WireGuard
Generar par de claves
wg genkey | sudo tee /etc/wireguard/client_private.key | wg pubkey | sudo tee /etc/wireguard/client_public.key
Configurar
Creo el fichero de configuración (wg-client0 será el nombre de la interfaz):
Lo modifico:
[Interface]
Address = 10.99.99.2/24
PrivateKey = iO5lDgbhB6cGsJL6Udw0SP+9x4N0FHrRj2irMiNM93Y=
[Peer]
PublicKey = K7noXpmRF60rW7BjqGTHTF8PaOVLASb1UJJF62YsFw8=
AllowedIPs = 0.0.0.0/0
Endpoint = 192.88.99.10:51820
PersistentKeepalive = 25
Modificar permisos
Iniciar WireGuard
[#] ip link add wg-client0 type wireguard
[#] wg setconf wg-client0 /dev/fd/63
[#] ip -4 address add 10.99.99.2/24 dev wg-client0
[#] ip link set mtu 1420 up dev wg-client0
[#] wg set wg-client0 fwmark 51820
[#] ip -4 route add 0.0.0.0/0 dev wg-client0 table 51820
[#] ip -4 rule add not fwmark 51820 table 51820
[#] ip -4 rule add table main suppress_prefixlength 0
[#] sysctl -q net.ipv4.conf.all.src_valid_mark=1
[#] nft -f /dev/fd/63
Se nos crea la interfaz:
4: wg-client0: <POINTOPOINT,NOARP,UP,LOWER_UP> mtu 1420 qdisc noqueue state UNKNOWN group default qlen 1000
link/none
inet 10.99.99.2/24 scope global wg-client0
valid_lft forever preferred_lft forever
Y la ruta:
En clientenormal
Cambiar ruta por defecto
Pruebas de funcionamiento
(todas hechas desde clientevpn)
Ping al otro extremo del túnel:
vagrant@clientevpn:~$ ping 10.99.99.1
PING 10.99.99.1 (10.99.99.1) 56(84) bytes of data.
64 bytes from 10.99.99.1: icmp_seq=1 ttl=64 time=2.43 ms
64 bytes from 10.99.99.1: icmp_seq=2 ttl=64 time=0.232 ms
^C
--- 10.99.99.1 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1002ms
rtt min/avg/max/mdev = 0.232/1.328/2.425/1.096 ms
Ping a clientenormal:
vagrant@clientevpn:~$ ping 192.168.0.2
PING 192.168.0.2 (192.168.0.2) 56(84) bytes of data.
64 bytes from 192.168.0.2: icmp_seq=1 ttl=63 time=1.56 ms
64 bytes from 192.168.0.2: icmp_seq=2 ttl=63 time=0.360 ms
^C
--- 192.168.0.2 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1002ms
rtt min/avg/max/mdev = 0.360/0.959/1.559/0.599 ms
Traceroute a clientenormal:
vagrant@clientevpn:~$ traceroute 192.168.0.2
traceroute to 192.168.0.2 (192.168.0.2), 30 hops max, 60 byte packets
1 10.99.99.1 (10.99.99.1) 0.734 ms 0.275 ms 0.242 ms
2 192.168.0.2 (192.168.0.2) 0.712 ms 0.664 ms 0.617 ms
Extra: cliente VPN Windows
Conectar cliente
Conecto la VM a la red internet-vpn3:
Configuro estáticamente la interfaz:
Compruebo que la configuración se aplicó correctamente:
Compruebo que tengo conectividad con servervpn:
Configurar cliente
Descargo e instalo Wireguard:
Compruebo que funciona el programa:
Creo un nuevo túnel en blanco:
Como nos podemos dar cuenta, la generación de claves ha sido automática:
Completo la configuración y nombro el túnel:
Verifico que se ha creado correctamente:
Nos damos cuenta de que está inactivo (por ahora).
Modificar el servidor
Tengo que añadir el nuevo peer a wg0.conf. El fichero se quedaría así:
[Interface]
Address = 10.99.99.1/24
ListenPort = 51820
PrivateKey = wPO8E5rUB9hFCwJMQYsLwDtNV7eX9SZmL9h/VO+NwFY=
# IP forwarding
PreUp = sysctl -w net.ipv4.ip_forward=1
[Peer]
PublicKey = GLJ8rEoPu22e+t2xPP54TJoGCoq09+HiOuiwBV3TzSw=
AllowedIPs = 10.99.99.2/32
[Peer]
PublicKey = 3CNoT/Zae2eXK+yW0wm13qFWOEOwUcfCQrcIGttUPyk=
AllowedIPs = 10.99.99.3/32
Reinicio el servidor para que los cambios tomen efecto:
Activar cliente
Vemos que se nos crea la interfaz de túnel:
Pruebas de funcionamiento
Ping al otro extremo del túnel:
Ping a clientenormal:
Tracert a clientenormal:
Extra: cliente VPN Android
Conectar cliente
Conecto la VM a la red internet-vpn3:
Configuro estáticamente la interfaz:
Compruebo que la configuración se aplicó correctamente:
Compruebo que tengo conectividad con servervpn:
Configurar cliente
Instalo Wireguard:
Compruebo que funciona el programa:
Creo un nuevo túnel en blanco:
Genero un par de claves:
Completo la configuración:
Verifico que se ha creado correctamente el túnel:
Está inactivo (por ahora).
Modificar el servidor
Tengo que añadir el nuevo peer a wg0.conf. El fichero se quedaría así:
[Interface]
Address = 10.99.99.1/24
ListenPort = 51820
PrivateKey = wPO8E5rUB9hFCwJMQYsLwDtNV7eX9SZmL9h/VO+NwFY=
# IP forwarding
PreUp = sysctl -w net.ipv4.ip_forward=1
[Peer]
PublicKey = GLJ8rEoPu22e+t2xPP54TJoGCoq09+HiOuiwBV3TzSw=
AllowedIPs = 10.99.99.2/32
[Peer]
PublicKey = 3CNoT/Zae2eXK+yW0wm13qFWOEOwUcfCQrcIGttUPyk=
AllowedIPs = 10.99.99.3/32
[Peer]
PublicKey = DJusByULiqhbzBhSCDdVJZAjH6mNEUVE9qlyYc/CylM=
AllowedIPs = 10.99.99.4/32
Reinicio el servidor para que los cambios tomen efecto:
Activar cliente
Vemos que se nos crea la interfaz de túnel:
Pruebas de funcionamiento
Ping al otro extremo del túnel:
Ping a clientenormal:
Traceroute a clientenormal:
Conclusiones
Aquí expondré las conclusiones a las que he llegado tras comparar el acceso remoto de WireGuard con el de OpenVPN.
-
Con WireGuard no existe realmente el concepto de cliente-servidor, sino el de peer-to-peer. Aunque en la práctica, se distingue fácilmente cuál es el "servidor" porque es en el que abrimos un puerto específico durante la configuración.
-
La autenticación es mucho más sencilla con WireGuard, ya que se usa un par de claves y no certificados. Conceptualmente ambos mecanismos son casi iguales, pero en la práctica es mucho más cómodo trabajar con un par de claves porque nos ahorramos el tener que crear una Autoridad Certificadora, el firmado de certificados...etc. Es muy parecido, por no decir casi igual, a como se trabaja con SSH.
-
Los ficheros de configuración son notoriamente más cortos y sencillos en WireGuard.
-
WireGuard nos proporciona la herramienta
wg-quickpara controlar el servicio, lo cual es mucho más sencillo que trabajar con systemd.
Parte 4: sitio a sitio WireGuard

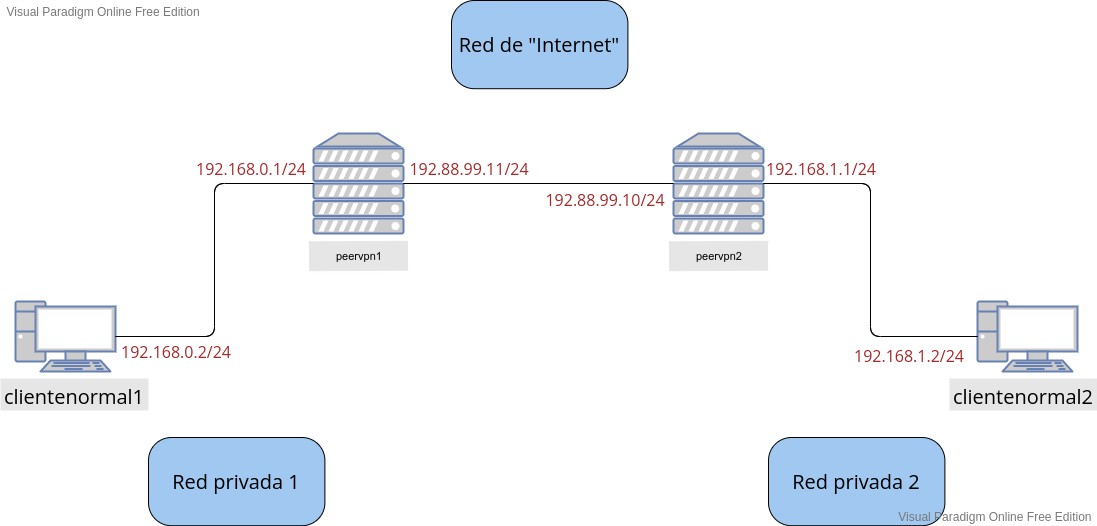

Escenario
Vagrantfile:
Vagrant.configure("2") do |config|
config.vm.synced_folder ".", "/vagrant", disabled: true
config.vm.provider :libvirt do |libvirt|
libvirt.cpus = 1
libvirt.memory = 512
end
config.vm.define :clientenormal1 do |clientenormal1|
clientenormal1.vm.box = "debian/bullseye64"
clientenormal1.vm.hostname = "clientenormal1"
clientenormal1.vm.network :private_network,
:libvirt__network_name => "privada1-vpn4",
:libvirt__dhcp_enabled => false,
:ip => "192.168.0.2",
:libvirt__netmask => '255.255.255.0',
:libvirt__forward_mode => "veryisolated"
end
config.vm.define :peervpn1 do |peervpn1|
peervpn1.vm.box = "debian/bullseye64"
peervpn1.vm.hostname = "peervpn1"
peervpn1.vm.network :private_network,
:libvirt__network_name => "privada1-vpn4",
:libvirt__dhcp_enabled => false,
:ip => "192.168.0.1",
:libvirt__netmask => '255.255.255.0',
:libvirt__forward_mode => "veryisolated"
peervpn1.vm.network :private_network,
:libvirt__network_name => "internet-vpn4",
:libvirt__dhcp_enabled => false,
:ip => "192.88.99.11",
:libvirt__netmask => '255.255.255.0',
:libvirt__forward_mode => "veryisolated"
end
config.vm.define :peervpn2 do |peervpn2|
peervpn2.vm.box = "debian/bullseye64"
peervpn2.vm.hostname = "peervpn2"
peervpn2.vm.network :private_network,
:libvirt__network_name => "internet-vpn4",
:libvirt__dhcp_enabled => false,
:ip => "192.88.99.10",
:libvirt__netmask => '255.255.255.0',
:libvirt__forward_mode => "veryisolated"
peervpn2.vm.network :private_network,
:libvirt__network_name => "privada2-vpn4",
:libvirt__dhcp_enabled => false,
:ip => "192.168.1.1",
:libvirt__netmask => '255.255.255.0',
:libvirt__forward_mode => "veryisolated"
end
config.vm.define :clientenormal2 do |clientenormal2|
clientenormal2.vm.box = "debian/bullseye64"
clientenormal2.vm.hostname = "clientenormal2"
clientenormal2.vm.network :private_network,
:libvirt__network_name => "privada2-vpn4",
:libvirt__dhcp_enabled => false,
:ip => "192.168.1.2",
:libvirt__netmask => '255.255.255.0',
:libvirt__forward_mode => "veryisolated"
end
end
En peervpn1
Instalar WireGuard
Generar par de claves
wg genkey | sudo tee /etc/wireguard/peervpn1_private.key | wg pubkey | sudo tee /etc/wireguard/peervpn1_public.key
Configurar
Creo el fichero de configuración:
Lo modifico:
[Interface]
Address = 10.99.99.1/32
ListenPort = 51820
PrivateKey = 4FMOxWlQLSGHlfgjFKBkmPDeURsHh7RBeCAoYMd/vGw=
# IP forwarding
PreUp = sysctl -w net.ipv4.ip_forward=1
[Peer]
Endpoint = 192.88.99.10:51820
AllowedIPs = 10.99.99.2/32, 192.168.1.0/24
PublicKey = FMJMI1Cg7jOLPTZj49DP/KE7RVK9/J8X5l3KG4LVf2Q=
Modificar permisos
Iniciar WireGuard
[#] sysctl -w net.ipv4.ip_forward=1
net.ipv4.ip_forward = 1
[#] ip link add wg0 type wireguard
[#] wg setconf wg0 /dev/fd/63
[#] ip -4 address add 10.99.99.1/32 dev wg0
[#] ip link set mtu 1420 up dev wg0
[#] ip -4 route add 10.99.99.2/32 dev wg0
[#] ip -4 route add 192.168.1.0/24 dev wg0
Se crea la interfaz:
7: wg0: <POINTOPOINT,NOARP,UP,LOWER_UP> mtu 1420 qdisc noqueue state UNKNOWN group default qlen 1000
link/none
inet 10.99.99.1/32 scope global wg0
valid_lft forever preferred_lft forever
Y las rutas:
En peervpn2
Instalar WireGuard
Generar par de claves
wg genkey | sudo tee /etc/wireguard/peervpn2_private.key | wg pubkey | sudo tee /etc/wireguard/peervpn2_public.key
Configurar
Creo el fichero de configuración:
Lo modifico:
[Interface]
Address = 10.99.99.2/32
ListenPort = 51820
PrivateKey = UP7xLuRK2JtsFxUwWqHxeREAwKPQPO9mvYfI+neNd3E=
# IP forwarding
PreUp = sysctl -w net.ipv4.ip_forward=1
[Peer]
Endpoint = 192.88.99.11:51820
AllowedIPs = 10.99.99.1/32, 192.168.0.0/24
PublicKey = nN/tik1TNOkFuupFVlNOaEO5hwQFKlsUWoKYsSCutzA=
Modificar permisos
Iniciar WireGuard
[#] sysctl -w net.ipv4.ip_forward=1
net.ipv4.ip_forward = 1
[#] ip link add wg0 type wireguard
[#] wg setconf wg0 /dev/fd/63
[#] ip -4 address add 10.99.99.2/32 dev wg0
[#] ip link set mtu 1420 up dev wg0
[#] ip -4 route add 10.99.99.1/32 dev wg0
[#] ip -4 route add 192.168.0.0/24 dev wg0
Se nos crea la interfaz:
7: wg0: <POINTOPOINT,NOARP,UP,LOWER_UP> mtu 1420 qdisc noqueue state UNKNOWN group default qlen 1000
link/none
inet 10.99.99.2/32 scope global wg0
valid_lft forever preferred_lft forever
Y las rutas:
En clientenormal1
Cambiar ruta por defecto
En clientenormal2
Cambiar ruta por defecto
Pruebas de funcionamiento
Ping desde clientenormal1 a clientenormal2:
vagrant@clientenormal1:~$ ping 192.168.1.2
PING 192.168.1.2 (192.168.1.2) 56(84) bytes of data.
64 bytes from 192.168.1.2: icmp_seq=1 ttl=62 time=2.77 ms
64 bytes from 192.168.1.2: icmp_seq=2 ttl=62 time=0.958 ms
^C
--- 192.168.1.2 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1002ms
rtt min/avg/max/mdev = 0.958/1.865/2.772/0.907 ms
Ping desde clientenormal2 a clientenormal1:
vagrant@clientenormal2:~$ ping 192.168.0.2
PING 192.168.0.2 (192.168.0.2) 56(84) bytes of data.
64 bytes from 192.168.0.2: icmp_seq=1 ttl=62 time=1.26 ms
64 bytes from 192.168.0.2: icmp_seq=2 ttl=62 time=0.721 ms
^C
--- 192.168.0.2 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1001ms
rtt min/avg/max/mdev = 0.721/0.992/1.264/0.271 ms
Traceroute desde clientenormal1 a clientenormal2:
vagrant@clientenormal1:~$ traceroute 192.168.1.2
traceroute to 192.168.1.2 (192.168.1.2), 30 hops max, 60 byte packets
1 192.168.0.1 (192.168.0.1) 0.264 ms 0.244 ms 0.228 ms
2 10.99.99.2 (10.99.99.2) 0.558 ms 0.540 ms 0.495 ms
3 192.168.1.2 (192.168.1.2) 0.748 ms 0.700 ms 0.685 ms
Traceroute desde clientenormal2 a clientenormal1:
vagrant@clientenormal2:~$ traceroute 192.168.0.2
traceroute to 192.168.0.2 (192.168.0.2), 30 hops max, 60 byte packets
1 192.168.1.1 (192.168.1.1) 0.800 ms 0.774 ms 0.764 ms
2 10.99.99.1 (10.99.99.1) 1.665 ms 1.653 ms 1.760 ms
3 192.168.0.2 (192.168.0.2) 2.553 ms 2.544 ms 2.535 ms
Conclusiones
Aquí expondré las conclusiones a las que he llegado tras comparar el sitio a sitio de WireGuard con el de OpenVPN.
Además de las ya mencionadas en el anterior apartado de conclusiones, sólo quedaría una más por destacar, y que sólo ha sucedido con la configuración de sitio a sitio:
- El manejo de rutas es mucho más sencillo con WireGuard, ya que sólo nos tenemos que preocupar de que el parámetro
AllowedIPsesté correctamente relleno con las rutas que necesitamos en cada peer. Con OpenVPN influyen losccd, "complicando" un poco la configuración.
Bibliografía
PARTE 1:
https://kifarunix.com/install-openvpn-server-on-debian-11-debian-10/
PARTE 2:
https://medium.com/@bjammal/site-to-site-vpn-on-a-single-host-using-openvpn-e9c5cdb22f92
https://www.matoski.com/article/site-to-site-openvpn-firewalld-debian/
https://openvpn.net/community-resources/how-to/#scope (sección Including multiple machines on the client side when using a routed VPN (dev tun))
PARTE 3:
https://www.linuxbabe.com/debian/wireguard-vpn-server-debian
https://www.makeuseof.com/how-to-set-up-wireguard-windows/
PARTE 4:
https://www.procustodibus.com/blog/2020/12/wireguard-site-to-site-config/
